Hinge Sensys 8639i W90 Black, Inset,
Press-in, TB45, 95° Opening
Hinge Sensys 8639i W90 Black, Inset,
Press-in, TB45, 95° Opening
Hinge Sensys 8639i W90 Black, Inset, Press-in, TB45, 95° Opening
Characteristics
| Product Code | 465368 |
| Hettich Number | 9091882 |
| Hinge type | Sensys |
| Model | 8639i Black |
| Opening Angle | 95° |
| Cabinet angle | 90° (W90) |

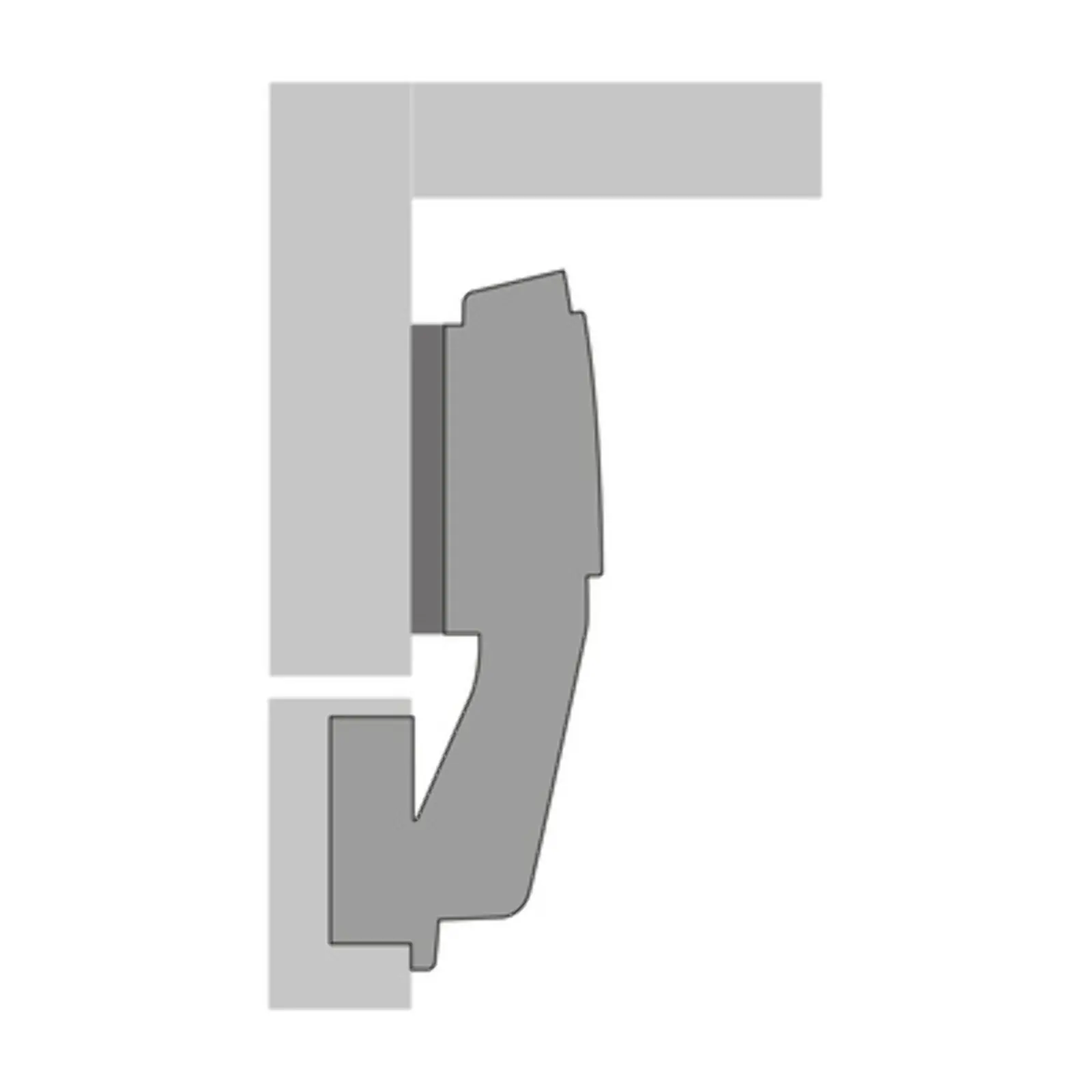

| Mounting Option | Inset |
| Cup | |
| Min/Max Door Thickness | 15/28mm |
| Closing type | Self closing |
| User friendly features | With integrated silent system |

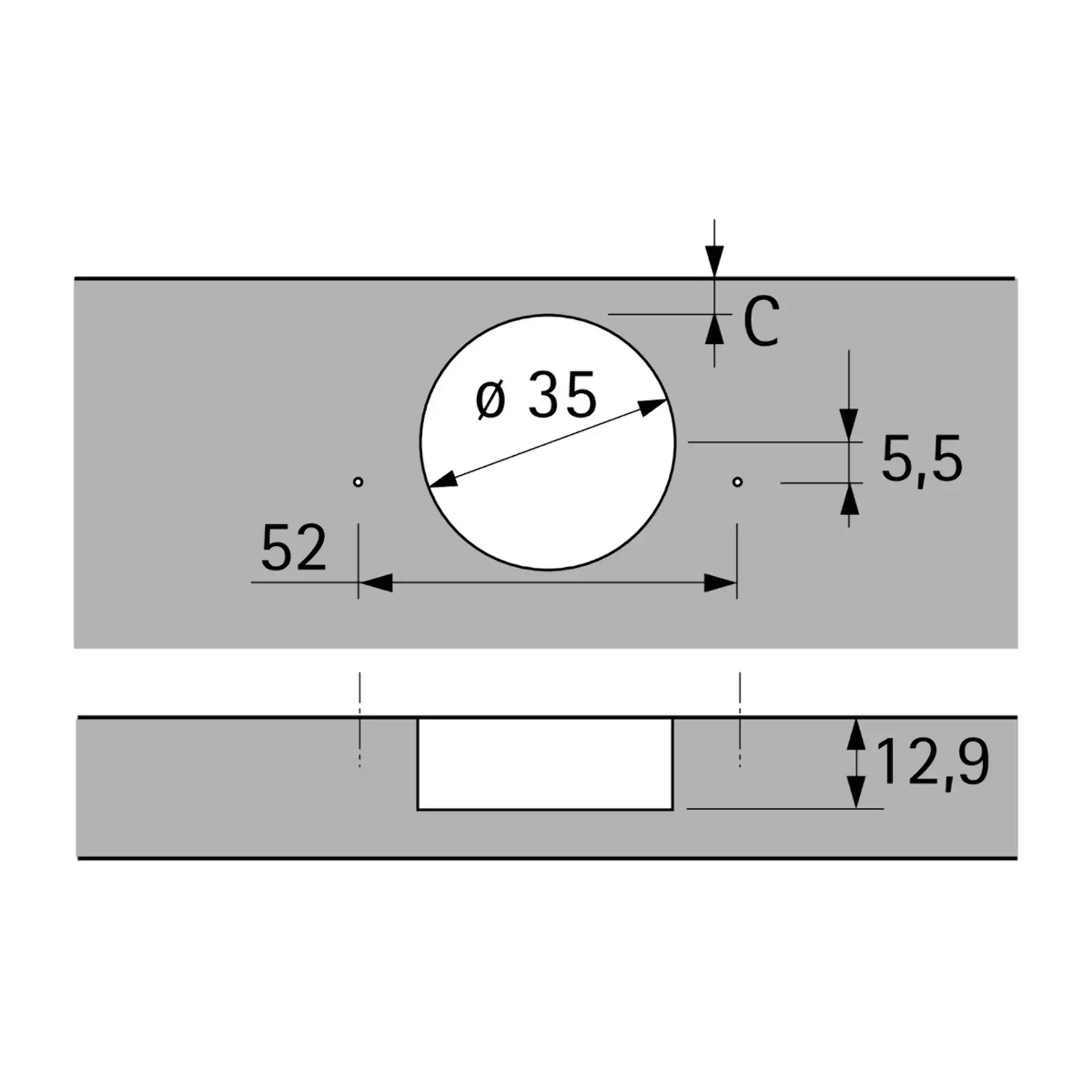

| Cup diameter | 35mm |
| Finish | Black |

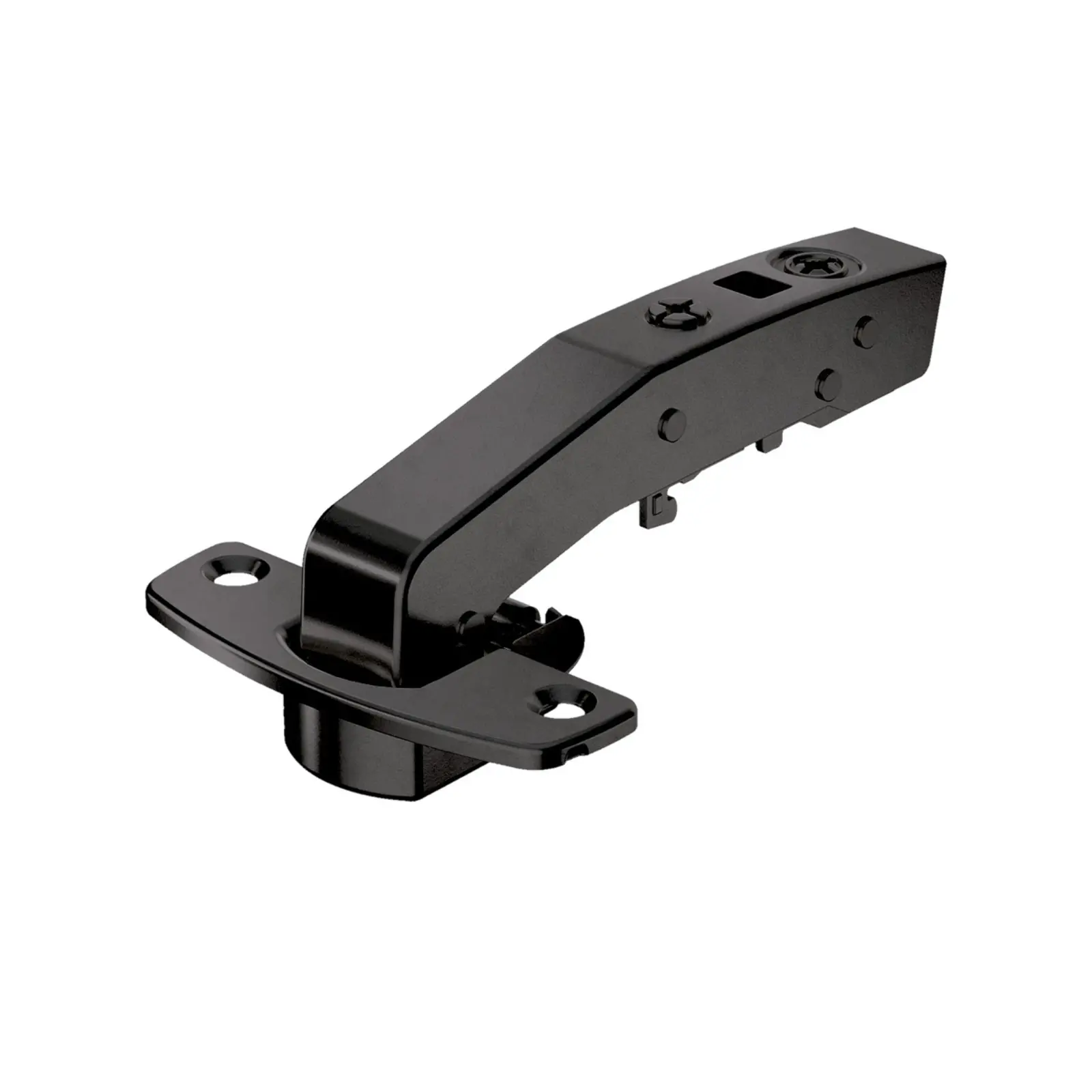

Hinge Sensys 8639i W90 Black, with integrated silent system, with integrated silent system, Inset, with press-in, TB45 cup, with 95° opening angle
No order has been made for this product.
Images displayed are for illustrative purposes only. Colour, pattern or size may vary depending on your screen resolution and other computer settings beyond our control.
They are intended as a representation only and are not intended to provide a perfect match to the actual finish of the product.
Complementary Products
464456
Mounting plates Cross with Direct height adjustment, with Euro screws, Black
0mm
464247
Mounting plates Cross with Direct height adjustment, with Euro screws, Black
1.5mm
465410
Mounting plates Cross with Direct height adjustment, with Euro screws, Black
3mm
