Characteristics
| Product Code | 462719 |
| Hettich Number | 9091401 |

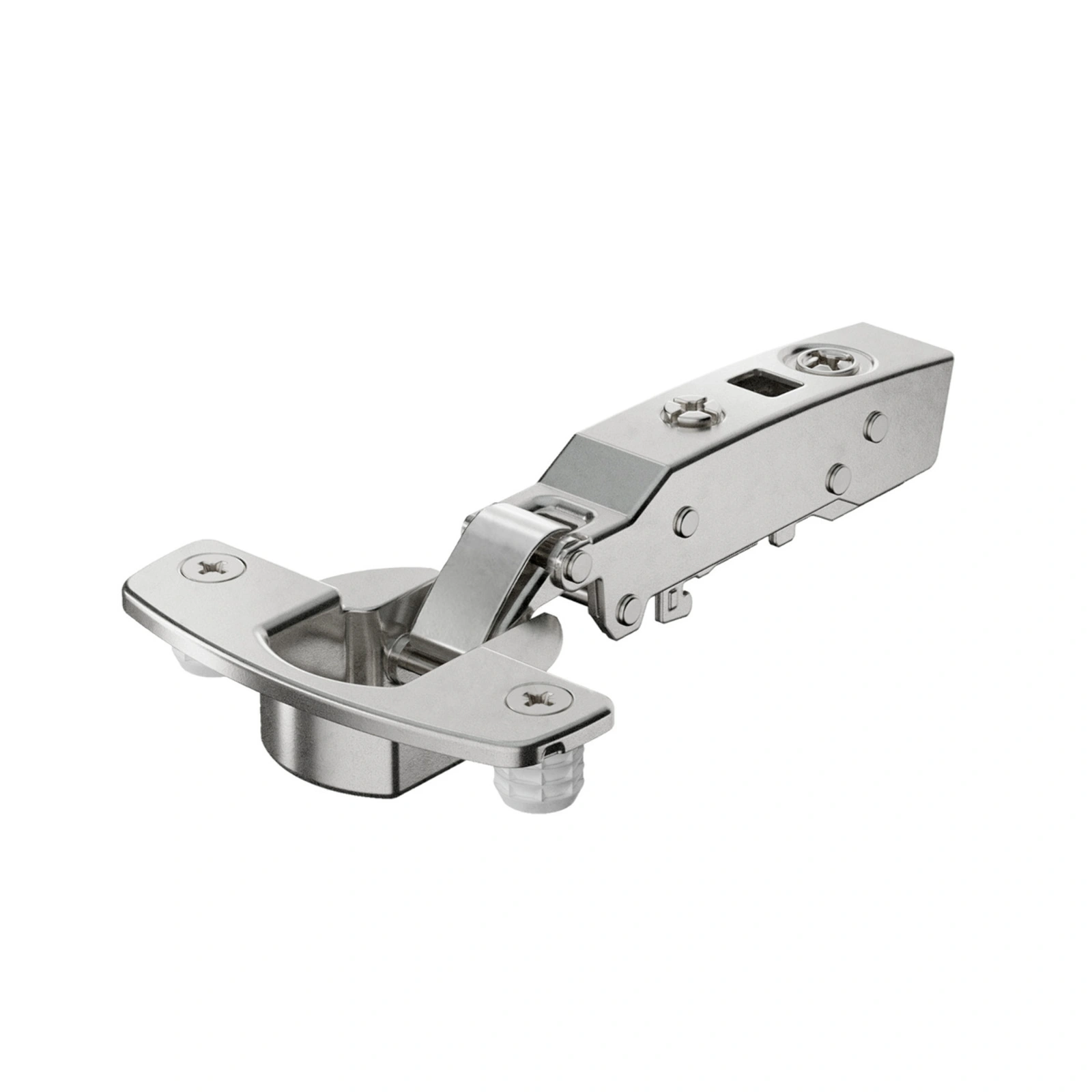

| Hinge type | Sensys |
| Model | 8631i |
| Opening Angle | 95° |
| Cabinet angle | 90° |

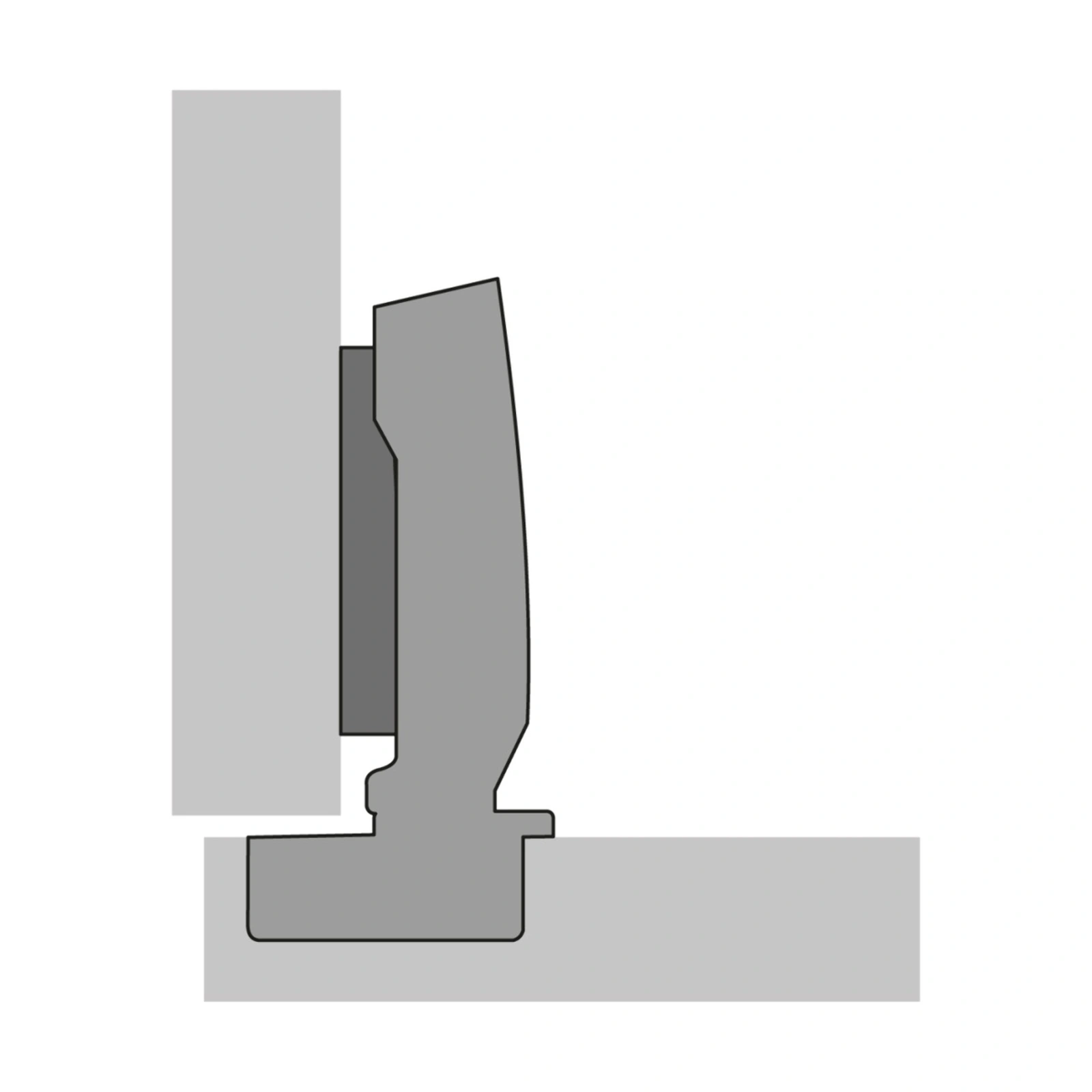

| Mounting Option | Full Overlay |
| Cup | TH53 |
| Min/Max Door Thickness | 15/24mm |
| Closing type | Self closing |
| User friendly features | With integrated silent system |
| Cup diameter | 35mm |
| Finish | Nickel |
No order has been made for this product.
461771
Mounting plates Cross with Direct height adjustment, with Euro screws, 0mm
461725
Mounting plates Cross with Direct height adjustment, with Euro screws, 1.5mm
460036
Mounting plates Cross with Direct height adjustment, with Euro screws, 3mm
461363
Mounting plates Cross with Direct height adjustment, with Euro screws, 5mm
461738
Mounting plates Cross with Direct height adjustment, with expanding sockets, 0mm
461724
Mounting plates Cross with Direct height adjustment, with expanding sockets, 1.5mm
461739
Mounting plates Cross with Direct height adjustment, with expanding sockets, 3mm
461335
Mounting plates Cross with Direct height adjustment, with expanding sockets, 5mm
461745
Mounting plates Cross with Direct height adjustment, with chipboard screws, 0mm
461727
Mounting plates Cross with Direct height adjustment, with chipboard screws, 1.5mm
461744
Mounting plates Cross with Direct height adjustment, with chipboard screws, 3mm
460147
Mounting plates Cross with Direct height adjustment, with chipboard screws, 5mm
462734
Mounting plates Face Frame with Direct height adjustment, screw-on, 0mm
461661
Mounting plates Face Frame with Direct height adjustment, screw-on, 4.5mm
465376
Mounting plates Face Frame with Direct height adjustment, screw-on, 4.5mm
461782
Mounting plates Cross with oblong hole height adjustment, with Euro screws, 0mm
461729
Mounting plates Cross with oblong hole height adjustment, with Euro screws, 1.5mm
460853
Mounting plates Cross with oblong hole height adjustment, with Euro screws, 3mm
460914
Mounting plates Cross with oblong hole height adjustment, with Euro screws, 5mm
461680
Mounting plates Cross with oblong hole height adjustment, with expanding sockets, 1.5mm
461020
Mounting plates Cross with oblong hole height adjustment, with expanding sockets, 3mm
461681
Mounting plates Cross with oblong hole height adjustment, with expanding sockets, 5mm
460672
Mounting plates Cross with oblong hole height adjustment, screw-on, 0mm
461728
Mounting plates Cross with oblong hole height adjustment, screw-on, 1.5mm
461737
Mounting plates Cross with oblong hole height adjustment, screw-on, 3mm
466133
Mounting plates Cross with oblong hole height adjustment, screw-on, 5mm
464349
Mounting plates Cross with oblong hole height adjustment, screw-on, 8mm
