464457 - Hinge Sensys 8638i Black, Full overlay, Screw-on, T

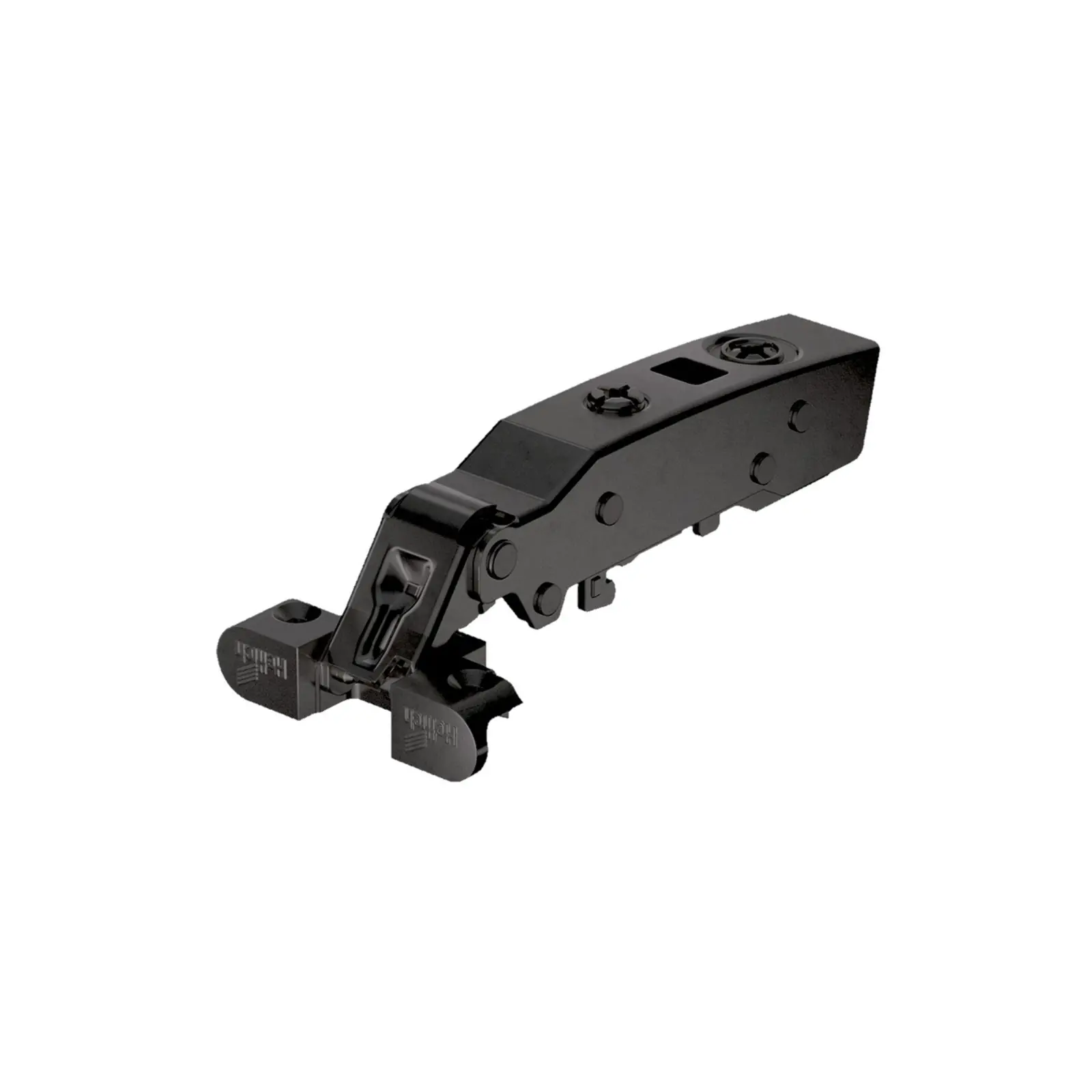

Hinge Sensys 8638i Black, Full overlay,

Screw-on, T32, 95° Opening

Hinge Sensys 8638i Black, with integrated silent system, with integrated silent system, Full overlay, with screw-on, T32 cup, with 95° opening angle. 464457.

Characteristics

Product Code	464457
Hettich Number	9091744
Hinge type	Sensys
Model	8638i Black
Opening Angle	95°
Cabinet angle	90°
Mounting Option	Full Overlay
Cup	T32
Min/Max Door Thickness	20/20mm
Closing type	Self closing
User friendly features	With integrated silent system
Finish	Black

Hinge Sensys 8638i Black, with integrated silent system, with integrated silent system, Full overlay, with screw-on, T32 cup, with 95° opening angle

Type de Ferrage (anglais)

Penture
